7 Albemarle Street - London W1S
A Grade II* listed terraced building built circa 1732 and listed 1958.
The works were undertaken with supervision from the Planning Authority.
Main Contractor - StructureTone Ltd
Architect - Farrells
Planners - Westminster
The problem - heritage window repairs needed
Rot and damage to all timber sash windows and frames.
The solution - heritage timber windows repaired
|
The works consisted of renovating all timber double hung sash windows, replacing sash cords, pulleys, brush pile and fasteners. Rotten/damaged frames and sashes were repaired with "Repair Care" resin.
Laminated annealed glass was installed into front elevation to improve acoustic properties.
|
Internal window shutters to ground and first floor were released and brought into servicable condition after being screwed shut and painted over for many decades.
|
|
The Royal College of General Practitioners

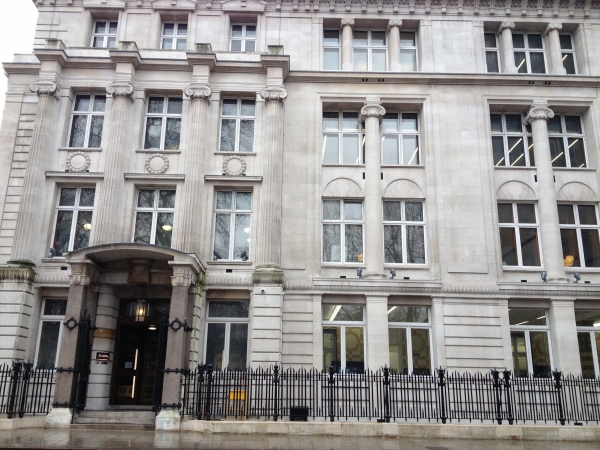

The Royal College of General Practitioners located at Euston Square was built in the early part of the 20th Century and extended circa 1930.
The original façade overlooking Melton Street is Grade II* listed. The windows are fabricated from hardwood with side hung sashes and bottom hung vents situated above.
The works were undertaken with supervision from the Planning Authority.
Main contractor: StructureTone
Architect: Tilney Shane
Planners: Camden
The problem - heritage window repairs needed
The prime windows are fitted with a bottom hung vent above the side hung sash, the top vents are opened by a remote cast brass operating system and new oak secondary is to be fitted to match the sight line of the prime window. The new timber secondary window and the original prime window are required to open simultaneously to achieve an air flow equal to the prime window.
The solution - heritage timber windows repaired
|
The remote cast brass operating system was removed from the prime window, the winding gear was examined and faulty components restored or replaced, then carefully stored with each component identified and logged.
The new secondary windows were fitted. |
New castings were designed to allow the winding gear to be face fitted to the new timber secondary with a link system coupling the prime window bottom hung vent to the secondary bottom hung vent. Both sets of top vents were now operable via the remote cast system.
|
|
